If you run a pneumatic conveying line, you’ve probably had this conversation on the plant floor: “Do we really need the air purge running on the rotary airlock, or can we skip it to save on compressed air?” It’s a fair question — and one that gets answered incorrectly more often than not.
Air purge on a rotary airlock gets filed under “seal protection” and left at that. That framing is too narrow, and it’s costing plants more in cleaning, seal replacement, and unplanned downtime than the compressed air ever would. A properly designed purge system isn’t a nice-to-have around the shaft seal — it’s a pressure-management strategy that protects the entire rotor cavity, not just one wear point.
The Purge System Does More Than Protect the Shaft Seal
Ask most maintenance techs what the air purge on a rotary valve is for, and you’ll get the same answer: it keeps fines out of the shaft seal. That’s true, but it’s half the story.
The other half happens at the end disc — the gap between the valve’s end cover and the rotor’s end plate. On any closed-end disc rotor, this clearance space is a collection point for fine powders. Left unpurged, product migrates into that gap and causes three predictable problems:
- Whistling or squealing as trapped particles interfere with rotor rotation
- Progressive clogging as fines compact in the clearance over repeated cycles
- Accelerated wear on the rotor tip and end cover surfaces from abrasive buildup
By introducing a controlled positive pressure between the end cover and rotor end plate, the purge air physically blocks product from migrating into that space in the first place. This is typically run alongside — not instead of — shaft seal purging. Treat them as two purge zones on the same valve, not one.
Positive Pressure Is the Whole Game — But Most Setups Get the Math Wrong
For a purge system to actually work, the purge air pressure has to stay positive relative to the process air pressure inside the valve at all times. If it doesn’t, conveying air (and the product in it) flows backward into the seal or end-disc clearance instead of purge air flowing out.
The industry default has long been: set the purge pressure at a fixed 0.5 bar above the system’s maximum expected pressure. It’s simple, and it’s been standard practice for decades. It’s also inefficient in most real operating conditions.
Here’s the problem: conveying line pressure isn’t static. It fluctuates with product loading, line length, blockage risk, and even ambient conditions. A fixed purge pressure set for worst-case maximum pressure means you’re overshooting — and wasting compressed air — during every normal operating cycle that isn’t running at peak system pressure. On a plant running multiple rotary airlocks across a shift, that overshoot adds up to a real number on the utility bill.
Flow Control Changes the Equation
This is the gap WIJAY Systems built its purge control approach around: instead of holding a fixed pressure setpoint regardless of what the process is actually doing, a flow-controlled purge system dynamically adjusts air delivery to maintain the positive pressure differential the seal actually needs — not a static number sized for the worst case.
The practical difference on the plant floor:
- Air consumption drops because the system isn’t constantly over-purging during normal-pressure operation
- Seal protection holds steady even as system pressure fluctuates, because the control loop is reacting to the differential in real time, not running open-loop
- Airflow is easier to monitor than pressure alone. A drop or spike in purge airflow is a much cleaner early indicator of a developing blockage or a seal leak than a pressure reading, which can mask small changes
- Fines stay out of the seal face, which is the actual mechanism behind most of the downstream failures — seal degradation, contamination ingress, product leakage, and the cleaning and repair downtime that follows
If you’re evaluating rotary airlock suppliers and the purge system spec sheet only lists a fixed pressure setting, that’s worth a second look. It tells you the design hasn’t been engineered around your actual operating range — it’s been engineered around a worst-case number.
Timing: The Detail Most Startup Procedures Get Wrong
Even a well-designed purge system underperforms if it’s switched on and off at the wrong point in the process — and this is where a lot of field problems actually originate, not in the hardware itself.
The purge air needs to be active before any pressure change occurs in the pneumatic conveying line — before the rotary airlock even starts rotating, not after. Starting the purge simultaneously with valve rotation, or worse, after conveying air pressure has already built up, means the seal and end-disc clearance are exposed unprotected during the exact window when pressure differential is changing fastest.
On the shutdown side, the same logic applies in reverse: purge air should keep running until the valve has fully stopped and there’s no residual positive pressure acting on the valve body. Cutting purge air the moment the valve stops rotating leaves the seal exposed while pressure is still equalizing.

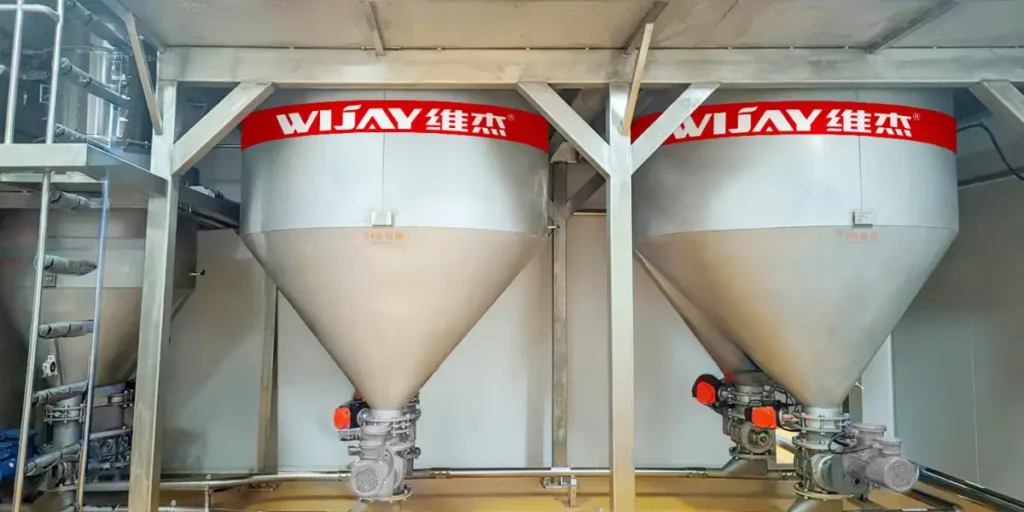

There’s one more condition plants routinely miss: fine powders, or any application with a standing material column above the valve, need continuous purge — even while the valve is idle. A rotary airlock sitting stationary under a loaded hopper is still under load. If the purge shuts off because the valve isn’t turning, product can migrate into the seal during every idle period, which is often when nobody’s watching the line.
Why This Matters Beyond the Seal
None of this is abstract engineering theory — it shows up directly in maintenance logs. Seal failures, contamination events, and unplanned cleaning stops on rotary airlock feeders trace back to purge design and purge timing far more often than they trace back to the rotor or housing itself. A valve with a well-specified rotor but a poorly controlled purge system will still underperform.
FAQ
Does every rotary airlock need an air purge system? Not every application, but any installation handling fine powders, abrasive material, or product sensitive to contamination should run purge protection on both the shaft seal and the end-disc clearance. Coarse, free-flowing granular products under low pressure differential are the exception, not the rule.
What’s the difference between purging the shaft seal and purging the end disc? Shaft seal purge protects the rotating shaft penetration point. End-disc purge protects the clearance gap between the rotor’s end plate and the valve’s end cover. They’re separate leak paths and ideally get separate, monitored purge zones.
Why does purge pressure need to exceed process pressure by a fixed margin? The 0.5 bar-over-maximum rule is a conservative industry default meant to guarantee positive pressure under worst-case conditions. It works, but it isn’t efficient — flow-controlled systems can maintain the same protection while tracking actual process pressure instead of a fixed worst-case number.
Can I monitor purge system health without shutting down the line? Yes — airflow is a more reliable real-time indicator than pressure. A trending drop in purge flow typically signals a developing seal leak or partial blockage before it becomes a production stop.
Where This Leaves Your Spec Sheet
Air purge on a rotary airlock isn’t a line item you size once and forget. It’s a pressure-management system with its own failure modes, its own timing requirements, and — done right — a real opportunity to cut compressed air cost without giving up seal protection.
WIJAY Systems engineers rotary airlock feeders as part of fully integrated pneumatic conveying lines — closed, dust-free, low-degradation material handling with purge control built around actual operating conditions, not worst-case defaults. If your current valve’s purge system is running on a fixed setpoint and you’re not sure what it’s actually costing you in air or downtime, that’s a conversation worth having with our process engineering team.
