Introduction to Central Feeding Systems
——————WIJAY——————
What is a Central Feeding System?
Wijay Central Feeding System simplifies and streamlines the management of numerous materials. The system’s piping and equipment design is streamlined, efficient, and highly reliable.
System Advantages
- +20% Production Efficiency: Automation boosts speed and reduces labor needs.
- –20% Labor Costs: Only 1–2 operators per line.
- Eco & Health Friendly: Dust-free, sealed, and precise material handling.
- Leak-Free & Low-Maintenance: Stable, simple, and easy to service.
- High-Precision Metering: Accuracy up to 2‰ ensures quality and fewer defects.
- User-Friendly: Highly automated for easy operation.
INDUSTRY SOLUTIONS FOR WIJAY SYSTEMS
——————WIJAY——————
Food & Beverage
With years of experience in automated material handling for the food hygiene industry and rich industry expertise, Wijay has extensive experience in key processes such as CIP cleaning and SIP sterilization.
Plastics Industry
The system solutions designed by Wijay are highly efficient, clean, and extremely reliable. We can integrate the entire plant’s material storage, centralized drying, conveying, metering, dust removal, metal detection, and wire drawing control into a complete system, …
Chemical Industry
Wijay offers a wide range of services for the chemical industry, covering daily chemicals, adhesives, organic silicon and other fine chemicals, powder coatings, water-based paints and other coating products, chemical batteries, electrolytic …
Lithium Battery
Wijay provides automated systems for the conveying, storage, screening, metering, drying, and batching of cathode and anode raw materials for lithium batteries. We have supplied powder and fluid material automation systems to Futong Group and Bettery.
New Materials
With years of experience in the automated material handling field for the new materials industry and rich industry expertise, Wijay has served many world-renowned leading new material enterprises, designing and implementing systems for them, …
Tell Us What’S Your Material Type And We’ll Tailor-Make Solutions For You
KEY COMPONENTS OF CENTRAL FEEDING SYSTEM
——————WIJAY——————
Central Control Station (PLC System)
The brain of the entire central feeding system, featuring Siemens or equivalent PLC controllers with large-format color touchscreen HMI. Manages feeding schedules, monitors material levels, controls dust collection, and provides alarm notifications. Supports up to 36 injection molding machines with expandable architecture.
Vacuum Conveying System
High-efficiency roots blower or vacuum pump generates negative pressure for material transportation. Conveys plastic granules and powders through stainless steel 304 pipelines up to 100 meters horizontal distance. Includes automatic cleaning cycles to prevent cross-contamination between materials.
Dehumidifying Drying System
Centralized honeycomb dehumidifier removes moisture from hygroscopic materials (PA, PC, PET, PBT). Achieves dew point of -40°C or lower with adjustable drying temperature from 40°C to 180°C. Integrated hot air circulation ensures uniform drying and material quality.
Material Distribution Station
Distributes raw materials from central storage silos to individual production machines. Features quick-coupling design for easy assembly and maintenance. Equipped with material selectors, cut-off valves, and pneumatic controls for precise delivery.
Storage Silos & Hoppers
Large capacity storage tanks (500kg – 10,000kg) with material level sensors and dust collection ports. Options include vacuum hoppers with magnetic reed switches and electric-eye hoppers for automatic feeding control directly mounted on injection molding machines.
Dust Collection
Dual-stage filtration combining cyclone dust collectors and pulse dust collectors. Automatically removes dust and fines from raw materials during vacuum conveying, improving product quality and maintaining clean workshop environment.
Auxiliary Equipment
Includes gravimetric blenders for precise color and additive dosing, plastic crushers for regrind integration, metal separators for contamination detection, and proportional mixers for virgin/regrind blending.
WHY CHOOSE WIAJY FOR YOUR CENTRAL FEEDING SYSTEM?
At WIJAY, we bring over 15 years of expertise in central feeding systems. Our global presence with over 1,000 installations in 15+ countries ensures we deliver reliable, high-performance solutions tailored to your needs.
- Certified by CE, ISO certification.
- High quality, cost effective, low failure rate central feeding system.
- Professional after-sales service with quick response to your needs
We offer customized engineering with site surveys and 3D CAD layouts, optimizing every system for maximum efficiency and future flexibility.
With a commitment to reliability, innovation, and exceptional support, we’re the trusted partner for companies worldwide. Request your free quote today to get started.
SUCCESS STORIES OF NEGATIVE PRESSURE CONVEYING SYSTEMS
——————WIJAY——————
Wijay pneumatic conveying system delivers real results for manufacturers across the globe.

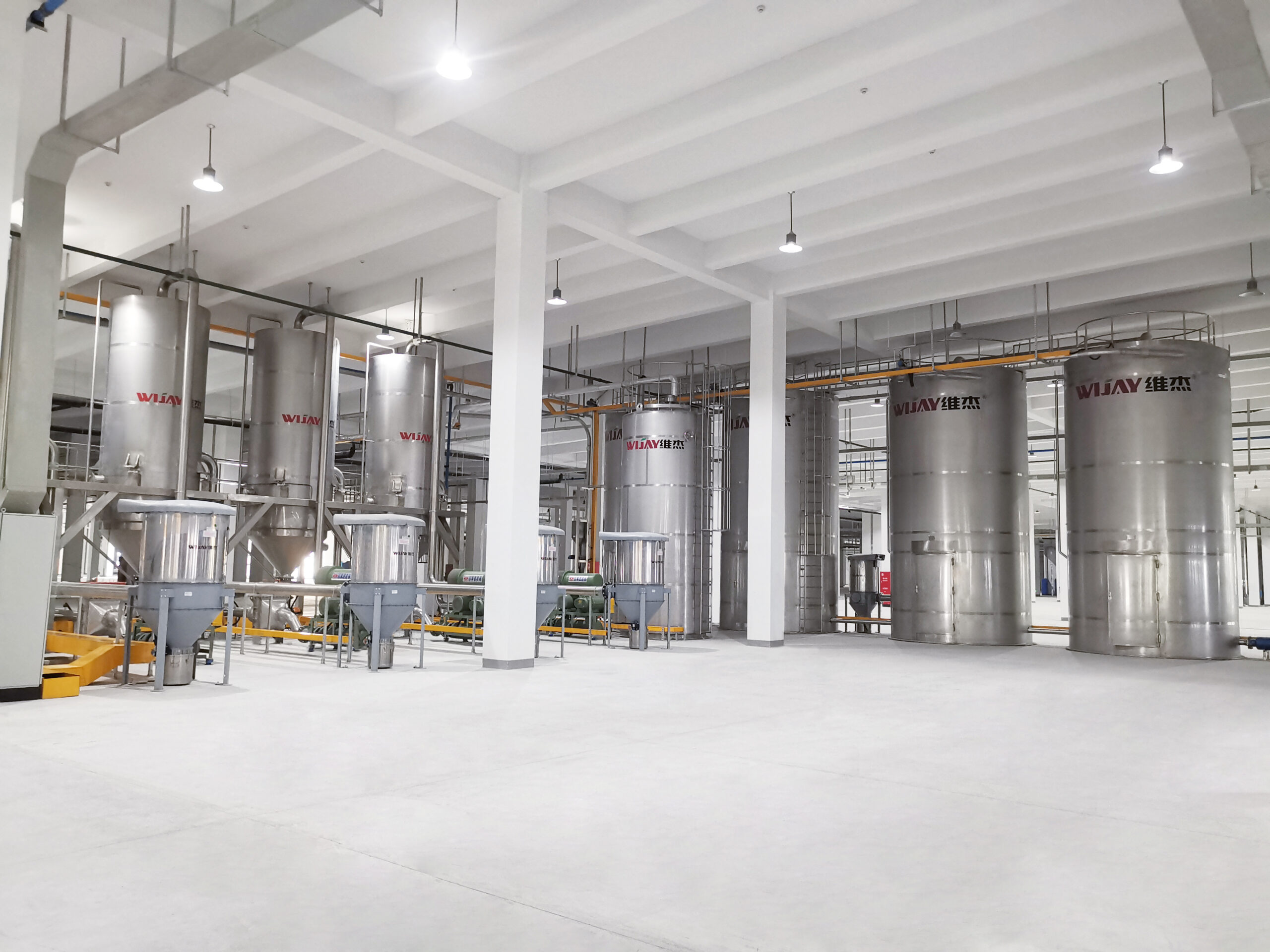

Custom Engineered Powder Conveying System for a 200,000-TPY Facility
WIJAY'S LONG-TERM CLIENTS
——————WIJAY——————
ANY FURTHER QUESTIONS ABOUT PNEUMATIC CONVEYING SYSTEMS?
Get Help Choosing Your Ideal Conveying Systems!
Find out what applies to your conveying system and products! Fill in the form to get free, personal advice from our engineers as well as comparisons with other technologies to find the best solution for your needs.
