If you run a bakery, flour trading, or premix production plant, you already know the pressure points better than anyone:
- Sky-high factory rent in industrial zones, where every square meter of floor space stacked with bagged flour is money wasted.
- Rising labor costs for manual bag-breaking, feeding, and material handling — work that is repetitive, dusty, and increasingly hard to staff.
- Strict dust emission inspections from environmental protection authorities, where visible flour dust escaping into the workshop can trigger fines or production suspension.
- Flour caking and mold risk driven by subtropical, high-humidity, typhoon-prone climate — a persistent quality and food-safety headache for stored powder ingredients.
- Combustible dust and explosion-proof compliance requirements under occupational safety regulations, which many legacy pneumatic systems were never designed to meet.
These problems are not isolated; they compound. Manual handling increases labor cost, dust exposure, and compliance risk at the same time. Solving them requires a system designed around climate, regulatory environment, and cost structure — not a generic conveying setup adapted after the fact.
This case study walks through a recently delivered Taiwan bakery flour storage silo with a weighing and pneumatic conveying system, engineered and exported specifically for flour and premix
Project Overview:
The project scope covers a complete, modular material automation package designed for direct integration into an existing bakery or flour premix production line:

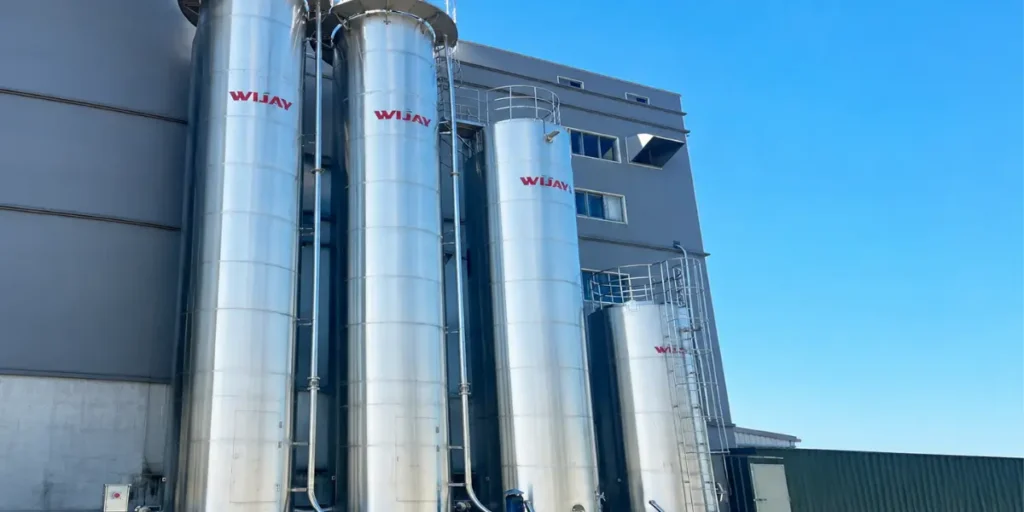

- 2 x food-grade 304 stainless steel enclosed storage silos, 60m³ each
- High-precision online weighing and metering system
- Dust-free, fully enclosed pneumatic conveying equipment
- Modular, export-ready configuration built to comply with sea freight, safety, and food-hygiene standards from the outset

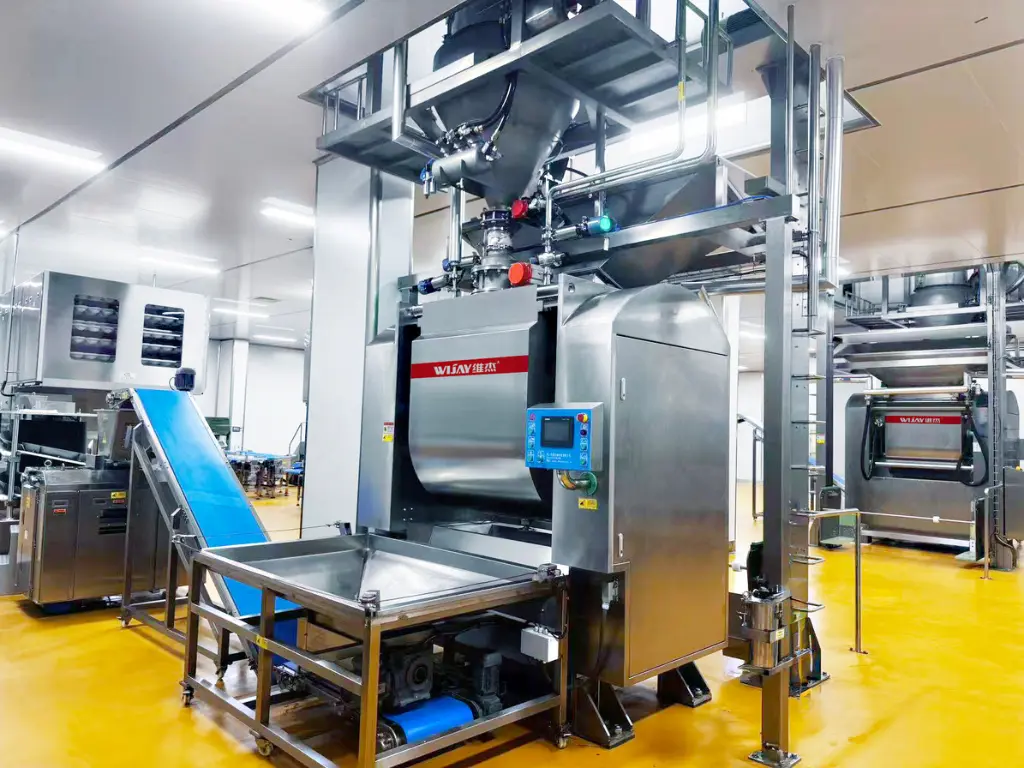

The system was designed as a single integrated line: raw flour is received, weighed, stored in sealed silos, and pneumatically conveyed directly to the mixer or premix equipment — with no open-air exposure and no manual bag handling at any stage. This integrated setup leads to the four core advantages of the weighing storage silo.
Four Core Advantages of the Weighing Storage Silo
1. Precision Weighing for Reconciliation and Compliance Audits
Each silo is fitted with industrial-grade load cell weighing modules that deliver accurate, real-time metering of inbound and outbound material. The system automatically generates inventory ledgers, weighing slips, and exportable reports, and can integrate directly with the plant’s existing ERP system for automated stock reconciliation.
For flour traders and manufacturers, this directly supports procurement/sales bookkeeping, customs verification, and internal stock audits — eliminating manual weighing errors and keeping financial records fully traceable.
2. Moisture and Typhoon-Resistant Design for Island Climate
The fully sealed silo structure, combined with breather valves, pulse dust collectors, and a temperature/humidity balancing system with dehumidification, is built to withstand high-temperature, high-humidity environment. This effectively eliminates flour moisture absorption, caking, and mold — while keeping insects and contaminants fully sealed out, in line with food hygiene and safety regulations.
Structurally, each silo sits on a high-strength anchor-bolt concrete foundation with a base ring and four weighing load cells for secure mounting — designed to resist tipping in typhoon-force wind conditions.
3. Reduced Footprint and Labor, Lowering High Operating Costs
By replacing bagged flour storage with vertical, centralized silo storage, the system significantly reduces the floor area required — a direct answer to high industrial rent. Loading and unloading are fully automated, removing the need for manual bag-breaking and feeding, which cuts high-wage labor costs while eliminating bag-breakage spillage losses.
Result: flour material loss is controlled to within 0.3%.
4. Full Explosion-Proof Safety Package, Compliant with Safety Regulations
Each silo includes anti-static grounding, explosion venting devices, and high/low level alarms as standard — addressing combustible flour dust risk at the source. The structural reinforcement is rated for ocean freight and crane lifting vibration, with protection levels suited to outdoor island humidity and workshop conditions, enabling the equipment to pass Taiwan occupational safety inspections.

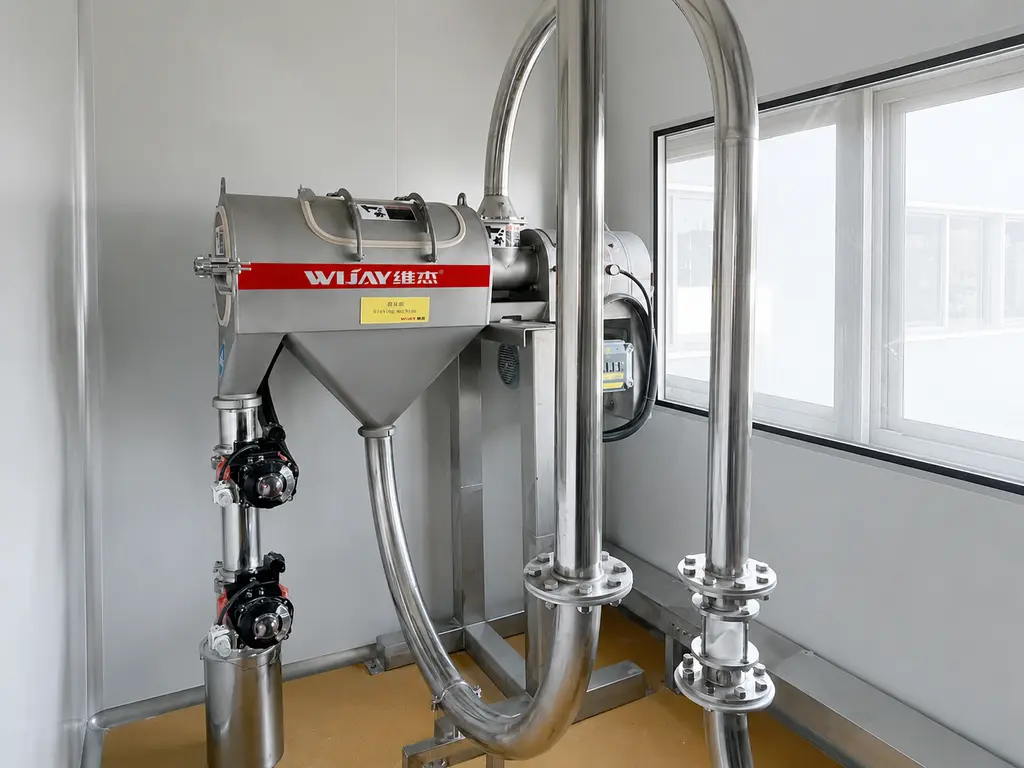

Pneumatic Conveying System: Process Advantages That Protect Flour Quality
Fully Enclosed, Zero Dust Emission
The system uses positive-pressure pneumatic conveying through fully enclosed piping, transporting flour directly from the silo to the production line, mixer, or premix equipment with zero dust leakage. This is built to meet Taiwan’s strict workshop dust emission standards, enabling dust-free operation and reducing ongoing cleaning and maintenance costs.
Gentle Conveying That Preserves Flour Quality
The positive-pressure process minimizes friction, preventing flour particles from clumping or breaking apart, and avoiding damage to gluten structure. This protects the consistency and texture of the finished baked or noodle product — a critical requirement for Taiwan’s premium bakery and refined flour-based food producers, and a clear advantage over traditional mechanical conveying methods.

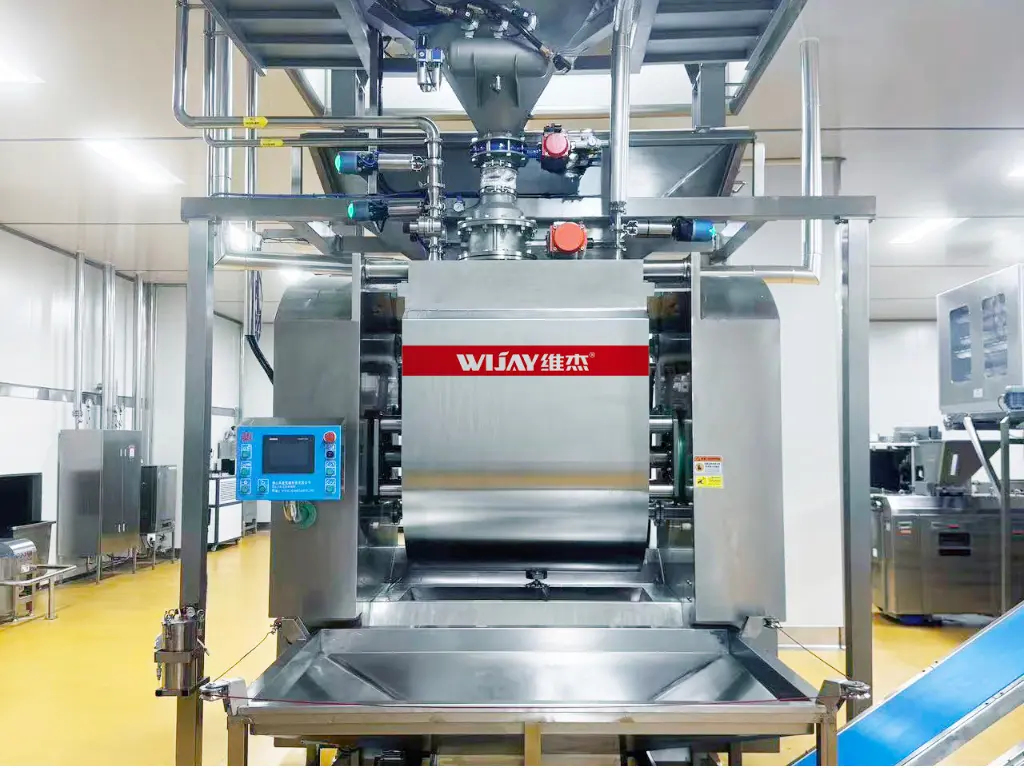

Automatic Quantitative Batching for Standardized Mass Production
Variable-frequency pneumatic conveying is linked directly with the weighing system to deliver precise, automatic quantitative dosing with minimal batching error, stabilizing product formula consistency and reducing defect rates. A single system can also supply multiple production lines from one set of equipment, maximizing cost-efficiency for standardized, large-scale manufacturing.
[Image placeholder: Pneumatic conveying pipeline connecting silo to mixer/dosing station]
Quantified Results Summary
| Focus Area | Measurable Outcome |
|---|---|
| Material loss | Flour loss controlled to within 0.3% |
| Floor space | Significant footprint reduction vs. bagged storage |
| Labor cost | Manual bag-breaking and feeding labor eliminated |
| Batching accuracy | Automated dosing with minimal formula error |
| Product quality | Gentle conveying preserves gluten structure and texture |
| Compliance | Fully aligned with Taiwan food safety, environmental, and occupational safety standards |
In short, this Taiwan bakery flour storage silo solution delivers the four outcomes that matter most to flour and bakery producers: lower loss, lower cost, stable quality, and full regulatory compliance — with zero compliance risk across food safety, environmental, safety, and trade audit requirements.
Get a Tailored Quote for Your Flour or Bakery Plant
If you’re evaluating a bakery flour storage silo, pneumatic conveying system, or automatic powder batching system for a plant — or anywhere with similar climate and regulatory conditions — our engineering team can review your production line layout and provide a configuration proposal and quotation.
📩 Email: wijay@wijaygroup.com 💬 WhatsApp: +86 18188897761
Contact us today with your production capacity and site details, and we’ll prepare a customized silo and conveying system proposal for your plant.
