Metal contamination in a powder line rarely announces itself early. It shows up as a customer complaint about a foreign object in a finished product, a metal detector rejecting an entire batch on the packaging line, or — quietly, over months — as accelerated wear on a grinder, sizing screen, or blending head that nobody connected to a fine wire fragment or a flake of rust that entered the system upstream. By the time any of that becomes visible, the cost has already compounded: scrapped product, an equipment repair that wasn’t on the maintenance schedule, and in food, dairy, and pharmaceutical operations, a real compliance exposure if the contamination reaches a customer.
Pneumatic conveying makes this problem harder to catch, not easier. High-velocity powder streams move tramp metal — wire fragments, work-hardened stainless steel, rust flakes, wear debris from upstream equipment — through the system fast enough that visual inspection or downstream detection alone isn’t a reliable safeguard. A magnetic separator for bulk powder conveying, placed correctly in the line, is what actually intercepts that material before it reaches critical equipment or finished product — and the right design depends heavily on what’s being conveyed and under what regulatory bar.
Why Metal Contamination Is a Bigger Risk in Pneumatic Lines Than It Looks
Tramp Metal Enters From More Places Than People Expect
Metal contamination doesn’t require an obvious source. It accumulates from wear on upstream equipment, from processing hardware that work-hardens over time and sheds fragments, and from incoming raw material itself. In a gravity-fed or mechanical system, some of that material has a chance to settle or be visually caught. In a pneumatic line running at conveying velocity, it doesn’t get that chance.
Weakly Magnetic Contaminants Are the Ones That Slip Through
Standard-strength magnets catch strongly ferrous material easily. What they routinely miss is weakly magnetic contamination — work-hardened stainless steel fragments and fine wear particles that pass through low-gauss separators undetected. In food, dairy, and pharmaceutical lines, those are exactly the contaminants most likely to trigger a recall or fail an audit, because they’re small enough to reach finished product and still carry enough risk to matter.
The Wrong Separator Placement or Design Creates New Problems
A magnet that isn’t aerodynamically designed for high-speed powder flow can itself become a source of product degradation — disrupting flow, creating pressure fluctuations, or altering bulk density as material moves past it. In sanitary environments, a separator with exposed seams or crevices becomes a cleaning liability and a bacterial harborage point, which defeats the purpose of installing it in the first place.
What Effective Magnetic Separation in a Powder Line Actually Requires
For food, dairy, and pharmaceutical operations specifically, the bar for a magnetic separator isn’t just “catches metal.” It has to do that while preserving product flow characteristics, meeting sanitary construction standards, supporting CIP where applicable, and holding up under the specific pipe geometry and velocity of the line it’s installed in. Two proven separator designs address these requirements differently, depending on the application.
Inline Spherical Magnets for High-Speed Powder Lines
Spherical inline magnets are built specifically for high-speed powder conveying lines, capturing metal fragments effectively without compromising product flow or integrity — addressing a limitation that straight-bar or bullet-style magnets in conventional lines have struggled with for years.
The spherical geometry optimizes both product flow and magnetic capture simultaneously, catching the smallest metal fines, debris, ferrous wear particles, and rust flakes even in a high-velocity stream. The magnetic strength involved typically runs more than double that of standard inline pneumatic magnets, with a large-diameter magnetic element positioned across the product stream — a configuration that improves fragment capture while holding weakly magnetic particles securely against the sphere’s surface, out of the main product path, which also improves overall sanitary performance.
The compact, easy-to-install housing supports a range of connection fittings for integration into new or existing systems. Its aerodynamic shell reduces pressure fluctuation and helps preserve product integrity by preventing particle breakage or bulk density shifts as material passes through. The spherical shape also creates a naturally low-pressure zone where captured debris collects, minimizing the risk of recontamination back into the product stream.
Key Characteristics
- High magnetic strength: rare-earth magnet technology certified up to roughly 12,000 gauss, well above the 7,000–8,000 gauss typical of conventional bar- or bullet-style magnets
- Aerodynamic design: minimizes particle breakage and reduces the risk of product bridging or blockage
- Self-cleaning housing geometry: smooth internal surfaces with no protrusions, reducing cleaning frequency and contamination risk
- Optional abrasion-resistant surface treatment: for applications handling more abrasive powders
Where It Fits
Suited to dry powder products such as flour, starch, and semolina, and commonly deployed in flour mills, bakeries, and food processing plants. Dairy-grade configurations extend the design to sensitive dairy and pharmaceutical powder applications. It’s built for high-speed, high-volume vertical installation in blow-through, vacuum, gravity, and pneumatic conveying lines — typically positioned at feed inlets, ahead of metal detectors or critical processing equipment, before bagging, or ahead of bulk loading or direct truck-fill operations.
Sanitary Probe Magnets for Sensitive Powder Applications
Sanitary probe magnets are built for the most sensitive powder applications, meeting USDA dairy certification standards and making them a reliable option for pharmaceutical and infant formula production.
This design carries forward the same advanced principles behind the spherical inline magnet — effective metal fragment separation without disrupting bulk density or creating blockage risk — but in a probe configuration optimized for sanitary installation. The probe assembly uses a one-piece sanitary construction, meaning there are no seams that could become a weak point or a sanitation risk. It’s suitable for CIP-cleaned lines, with magnets rated to withstand temperatures up to 150°C across a range of CIP applications.
The separator is equipped with high-strength probe magnets rated above roughly 11,000 gauss, engineered specifically to capture weakly magnetic contaminants — including work-hardened stainless steel and stone particles — which materially improves food safety outcomes and product purity assurance.
Key Characteristics
- Probe magnets: high-strength rare-earth magnet configuration engineered to remove weakly magnetic contamination and work-hardened stainless steel
- Dual-magnet configuration: two magnets positioned at a 90-degree angle for comprehensive coverage across the flow path
- Sanitary construction: meets USDA dairy certification and FDA standards for use in sanitary-critical environments
Where It Fits
Suited to dry ingredients such as powders, meat meal, pet food, grain, bulk wheat products, flour, and cereal, as well as dairy and lactose powders, pharmaceutical powders, infant formula, and other sensitive products. It installs in vertical or inclined sections of pneumatic conveying pipe, sized for 3″–6″ (76–152 mm) diameter lines, typically positioned at incoming raw material intake, ahead of critical or high-value processing equipment, or at final product stage before packaging — suited to blow-through, vacuum, or powder conveying lines.
How to Choose the Right Magnetic Separator for Your System
Both designs share the same underlying rare-earth magnet technology and high field strength, but the correct choice comes down to the specific demands of the application:
- Choose the inline spherical magnet when airflow dynamics and minimizing product degradation are critical in a high-speed pneumatic conveying line.
- Choose the sanitary probe magnet when the application involves sensitive powders in an environment with strict sanitary and regulatory compliance requirements.
Frequently Asked Questions
Why does pneumatic conveying make metal contamination harder to catch? High-velocity powder streams move tramp metal through the system fast enough that visual inspection or downstream metal detection alone isn’t a reliable safeguard — the contamination has to be intercepted inline, at the point where it enters the conveying path.
What’s the difference between an inline spherical magnet and a sanitary probe magnet? An inline spherical magnet is built for high-speed powder conveying, prioritizing aerodynamic flow and strong capture in fast-moving streams. A sanitary probe magnet is built for sensitive powder applications requiring USDA dairy or FDA-level sanitary compliance, with a one-piece seamless probe design suited to CIP-cleaned lines.
Can a magnetic separator catch weakly magnetic contaminants like work-hardened stainless steel? Yes, but only at sufficient magnetic strength. High-gauss rare-earth designs — generally in the 11,000–12,000 gauss range — are specifically engineered to capture weakly magnetic material that lower-strength conventional magnets routinely miss.
Where should a magnetic separator be installed in a pneumatic conveying line? Common placement points include feed inlets, immediately ahead of metal detectors or critical processing equipment, before bagging operations, and ahead of bulk loading or direct truck-fill stages — anywhere tramp metal risk is highest or downstream equipment value is greatest.
Does a magnetic separator affect product flow or bulk density? A properly designed unit shouldn’t. Aerodynamic housing geometry is specifically engineered to minimize pressure fluctuation, prevent particle breakage, and avoid the bulk density shifts that a poorly designed separator can introduce into the line.
Building Metal Detection Into the Conveying Line, Not Around It

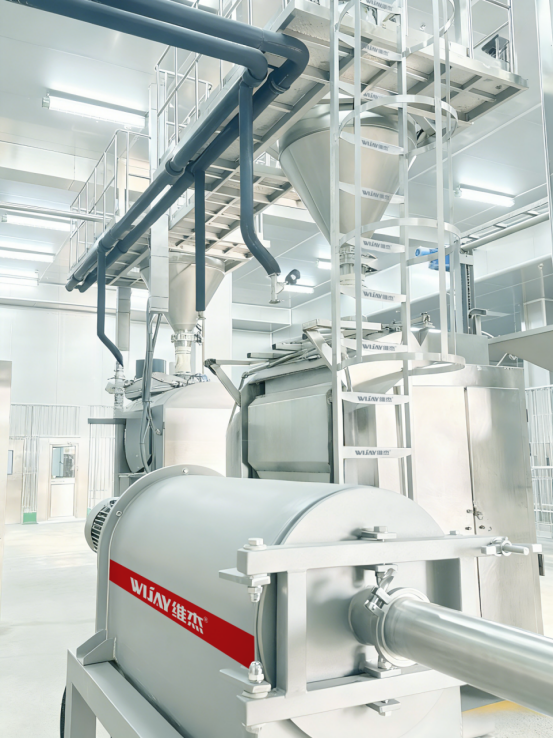

Magnetic separation only works as well as its placement, sizing, and integration into the rest of the conveying system — which is why it belongs in the original system design rather than added as an afterthought once a contamination issue has already occurred. WIJAY Systems designs pneumatic conveying lines with metal separation, dust-free enclosed transport, and low-loss automated handling engineered together as one system, across food, dairy, pharmaceutical, and other regulated industries. If tramp metal risk is a live concern on your current line, or you’re specifying a new system and want separation built in from the start, our engineering team can walk through your material profile, pipe layout, and compliance requirements to scope the right configuration. [Talk to our process engineering team →]
