Pneumatic Conveying System of Bulk Ingredients
Unpacking, feeding, storage, unloading, grinding, screening, drying, metal detection, conveying and metering equipment
20+
15+YEARS
EXPERIENCE
1000+
PROJECTS DELIVERED
CE & ISO
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Get a free pneumatic conveying system quote — response within 24h
WHY CHOOSE WIJAY SYSTEMS
——————WIJAY——————
Wijay Vacuum Conveying System designs and manufactures all key components in-house, delivering turnkey pneumatic conveying solutions that are reliable, precise, and built to last.
Most of the clients served by Wijay are globally renowned top enterprises. The solutions providedby Wijay are of excellent quality and highly reliable, ensuring both cost and quality advantages of yourproducts.
- +20% Production Efficiency: Automation boosts speed and reduces labor needs.
- –20% Labor Costs: Only 1–2 operators per line.
- Eco & Health Friendly: Dust-free, sealed, and precise material handling.
- Leak-Free & Low-Maintenance: Stable, simple, and easy to service.
- High-Precision Metering: Accuracy up to 2‰ ensures quality and fewer defects.
- User-Friendly: Highly automated for easy operation.
WIJAY’S PNEUMATIC CONVEYING SYSTEMS
——————WIJAY——————
WIJAY designs and engineers many different types of pneumatic conveying systems for bulk ingredient handling, each uniquely designed for specific projects. Depending on the required materials and the distances from storage to production, WIJAY will custom design the best possible pneumatic conveying solution. Each WIJAY pneumatic conveying system optimizes efficiency while minimizing contamination risk and ensuring material integrity throughout transfer. WIJAY ’s product lines include:
Positive Pressure Conveying System
One feed point to multiple destinations. Higher solid-to-gas ratio, smaller pipes, ideal for plant-wide distribution. Routing 1 → Multiple points Pressure Positive pressure Best for Distribution networks
Negative Pressure Pneumatic Conveying
Multiple pick-up points to a single destination. Self-contained, dust-safe. Perfect for multi-silo or multi-source operations. Routing Multiple → 1 point Pressure Up to -0.5 bar Best for Collection / Safety

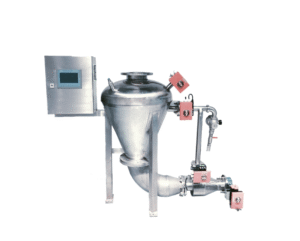

Dense Phase Conveying System
Low-velocity, high-pressure plug flow. Ideal for fragile, abrasive, or blended materials where product integrity matters. Velocity: 1–10 m/s Pressure: Up to 6 bar Best for: Fragile / Long distance
Dilute Phase Conveying System
High-velocity suspension flow. Economical, flexible, ideal for non-fragile powders and short-to-medium distances. Velocity: 15–30 m/s Capacity: High throughput Best for: Powders / Economy
Trust WIJAY for Your Vacuum Pneumatic Conveying System Needs
As an optimal solution for operations that must comply with stringent quality standards and regulations, WIJAY ’s advanced pneumatic conveying solutions are ideal for food, pharmaceutical, plastics, and chemical processing industries. Every WIJAY pneumatic conveying system is tailored to match the unique ingredient characteristics and production demands of a given application. Their innovative solutions ensure that materials are conveyed efficiently, maintaining their purity and consistency throughout the journey from delivery to storage to production.
By investing in a robust pneumatic conveying system fromWIJAY , manufacturers can maintain their commitment to delivering high quality products while adhering to industry standards and regulations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Conveying Capacity | ≤ 30 t/hr (customizable) |
| Max Conveying Distance | ≤ 300 m |
| Operating Vacuum Pressure | –10 to –50 kPa |
| Applicable Material Size | 0–5 mm particle diameter |
| Dust Removal Efficiency | 99.99% |
| Metering Accuracy | ±2‰ (with weighing integration) |
| Operators Required | 1–2 per production line |
| Explosion-Proof Option | Available (ATEX compliant) |
| Hygienic Design | CIP/SIP (food & pharma grade) |
| Engineering Proposal Delivery | 24 hours |
INDUSTRY SOLUTIONS FOR WIJAY SYSTEMS
——————WIJAY——————
Purpose-engineered pneumatic conveying systems for the specific requirements of your sector — from FDA food-grade to ATEX chemical-rated environments.
Food & Beverage
Plastics Industry
Chemical Industry
Battery Manufacturing
Advanced Materials
Calcium carbonate, silica. Heavy-duty systems for high-throughput plant operations. Wijay has served many world-renowned leading new material enterprises, designing and implementing systems for them, …
PNEUMATIC CONVEYING SYSTEM EQUIPMENT
——————WIJAY——————
Wijay develops and manufactures all critical components, ensuring quality control at every stage and unique competence across the entire system.
PNEUMATIC CONVEYING SYSTEM CASE STUDIES
——————WIJAY——————

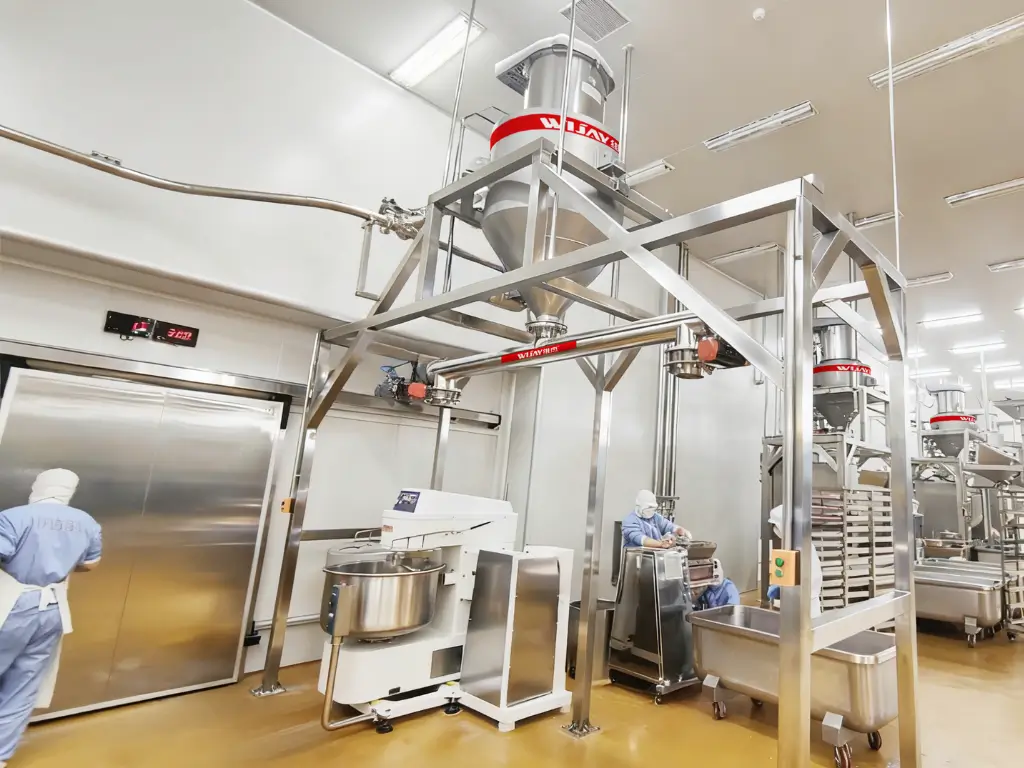

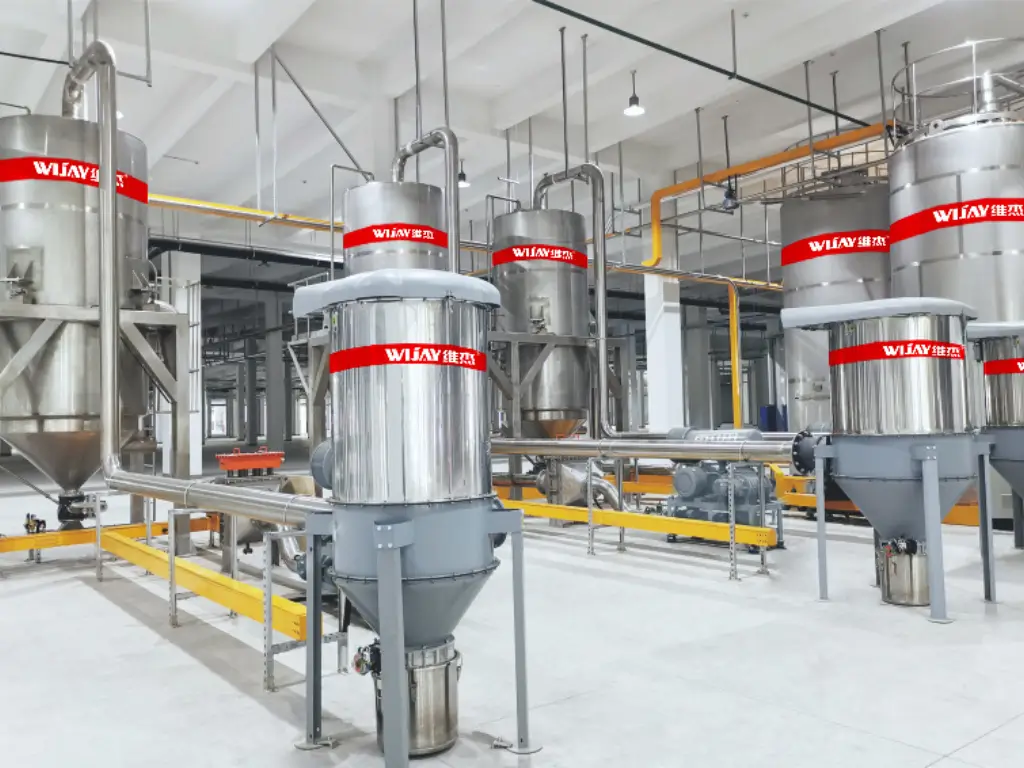

Pneumatic Conveying System for a Food Company
Multi-point vacuum system connecting 4 silos to 2 production lines. Achieved dust-free flour handling compliant with food hygiene standards. ↑ 20% production efficiency · Zero contamination incidents
Pneumatic Conveying System for Urea-Melamine-Formaldehyde Resin Production
Executed a fast-track turnkey project for a leading European chemical manufacturer. The custom solution for resin powder includes receiving, storage, conveying, and batching, meeting tight deadlines and earning the client’s official recommendation.
Pneumatic Conveying System for a Large-Scale Food Processing Facility
Implemented a comprehensive automated material handling solution for a major food manufacturer, combining powder and liquid ingredient processing. The system features CIP sanitation, precise temperature control, and multi-line integration, supporting a daily raw material intake of 500 tons with minimal maintenance requirements

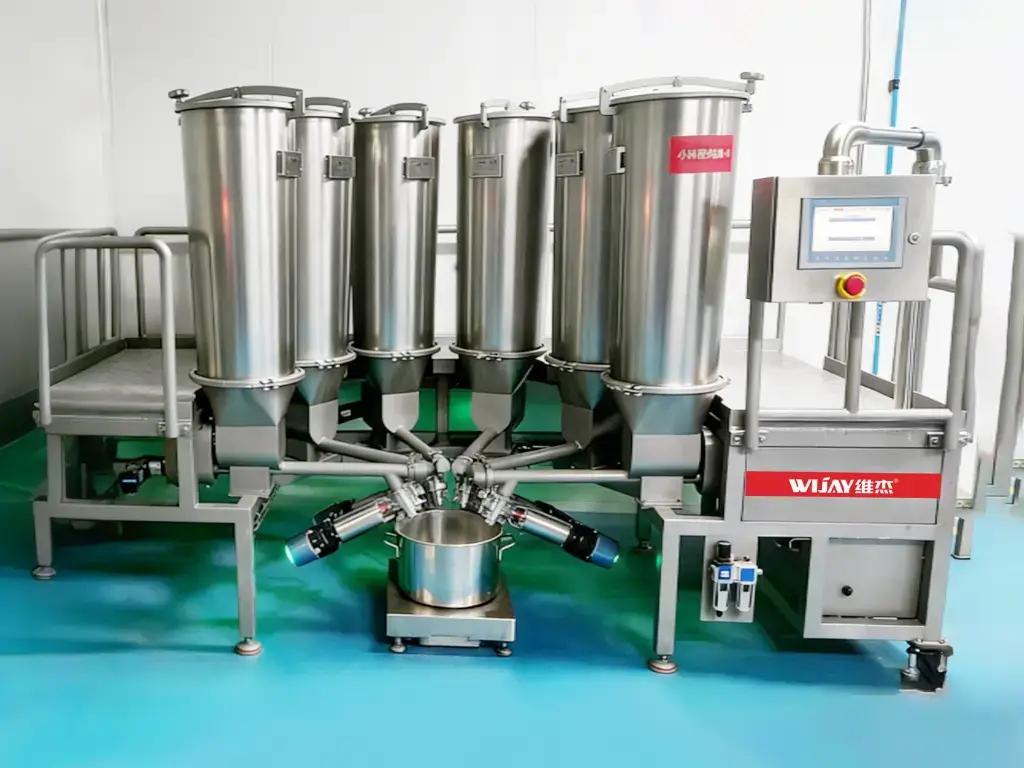

Automated Ingredient Batching & Pneumatic Conveying System
Designed a turnkey automated material handling solution for a major sauce production facility, covering both cold and hot sauce production lines. The system integrates robotic bag opening, enclosed pneumatic conveying, and high-precision batching, achieving zero contamination incidents and a 20% increase in production efficiency.
Automated Batching & Conveying for a Potato Chips Manufacturer
Delivered a fully automated material handling system to address labor-intensive processes in a large-scale potato chips plant. The enclosed pneumatic conveying system handles 9 different ingredients over 60 meters, eliminating dust hazards, improving recipe accuracy, and meeting strict ATEX safety standards.
Pneumatic Conveying System for a Global Optical Fiber Cable Production Base
Developed an intelligent automated conveying system for the world’s largest optical fiber cable manufacturing facility. The system handles 9 powder and granular materials, serving 180 production lines with a conveying capacity of 60 tons/hour and a maximum distance of over 600 meters, fully integrated with MES and ERP systems.
TRUSTED BY LEADING MANUFACTURERS ACROSS GLOBALLY
——————WIJAY——————
READY TO SOLVE YOUR MATERIAL HANDLING CHALLENGE?
Get a free pneumatic conveying system quote — response within 24h
